Tier1 and Tier-2 Weekly Report 2010-11-16

Daily Notes

  • Wed Nov 10
    • Change copysetup/copytoolin for ANALY_AUSTRALIA by schedconfig team at request of CA Cloud Squad

  • Sun Nov 14

  • Mon Nov 15
    • sites requested to update HOTDISK space token to 2 TB to conform with expected ADC updated request
      • 2 TB expected to be sufficient to end of 2011 running

General News

    • Open Issues and Ongoing Discussions:
      • AMOD stopped T0 export to TRIUMF-LCG2_DATADISK [20101111]
      • small logfiles going to tape endpoints at T1s [20101018]
      • temporary increase in size of HOTDISK at TRIUMF from 1 to 1.5 TB prior to central cleanup of unneeded DBRelease versions for T1s [20101013]
      • published site installed resource capacity information to be investigated and confirmed against WLCG information [20100928]
      • CREAM CE deployment preparations
      • HammerCloud tests of TRIUMF completed via panda to compare direct i/o via dcap, FileStager and full file copy
      • issue of sites within Cloud None within the production dashboard [20100829]
        • issue raised to ADC operations email list given that there was no ADC Weekly meeting yesterday
        • reply from ADC monitoring coordinator (A. Read) is that this long-standing problem is known and being worked on, but is difficult to fix
        • this problem will be on the agenda for the next ADC monitoring meeting scheduled for next week
        • Previously Reported Information on this topic:
          • escalate query to ATLAS dashboard support regarding missing CA-SCINET-T2 site in the ARDA dashboard production activity display [20100216]
            • reminder message posted to the Dashboard Savannah entry for this problem https://savannah.cern.ch/bugs/index.php?64507 [20100518] (updated 20101012)
            • news from ADC monitoring coordinator A. Read (20101013):
              • "The cloud issue has proven difficult to deal with in the present production dashboard framework. This month and next we are discussing changes in direction which we hope will make it much more straightforward to deal with the clouds."
      • CA-VICTORIA-WESTGRID-T2 site missing from the ATLAS dashboard SAM Visualization page [20100824]
      • HammerCloud tests of CA clouds sites is planned to be resumed soon to help measure site performance and identify any site setup bottlenecks [2010803]
      • discussion with DDM operations regarding centrally performed space cleaning policy and procedures [20100721]
      • submitted feature request to DaTRI to allow for disabling of auto-approval for LOCALGROUPDISK transfer requests [20100720]
      • CA-VICTORIA-WESTGRID-T2 site analysis queues marked online by Cloud Squad (20100709)
        • production queue kept in test state pending investigation of fortran runtime error "permission denied" within software release area (20100708) [SOLVED]
          • resolved by changing WN client NFS mounts to v3 from original NFSv4 (root cause within NFSv4 still unknown) [OPEN]
      • ROOTSYS truncated at 127 characters issue [20100608]
        • http://savannah.cern.ch/bugs/?68546 (open)
        • currently affecting Victoria (Tier3) and CA-SCINET-T2
        • varying character lengths below and above 127 characters show variable success and failure
        • related issue: user build jobs failing at CA-SCINET-T2 [20100511]
          • follow-up with site in regards to missing rpm installation; missing rpms added but problem is still occurring [20100518]
      • reviewing draft Squad How-To and providing feedback [20100407]
        • also contains useful information for sites
      • ongoing discussions with ADC experts regarding regional production activity and how to accommodate it cleanly within both the production system and the CA cloud and site operations [20100316]
      • running out of jobs at TRIUMF (and other CA cloud sites other than CA-SCINET-T2) [20100402]
        • "The problem may be due to the jet/group production task. Since these jobs have high priority, they are being sent to CA cloud, to the exclusion of lower prio jobs. Of course, they can only run at one site. So, other sites are running empty. Unanticipated side effect of running the task only at CA-SCINET-T2! Let me think how to solve it." K. De (ADC)
      • request submitted to Panda team for functionality to set site Panda queues offline automatically based upon scheduled outages/availability [20100216]
    • Outstanding Actions to Do:
      • follow-up information system publishing by dCache sites and use of FileStager within GangaRobot [20100111]
        • ie. dcap missing from TRIUMF and CA-ALBERTA-WESTGRID-T2 and so uses lcg-cp.

  • Squid Deployment [20101116]
    • CA cloud Frontier and Squid deployment information (versions and network information)
    • SAM tests: (CA Link), (Aus Link): currently status as of this morning (WARN is ok) [2011019]
      • CA-ALBERTA-WESTGRID-T2 OK (both for local squid and backup to SFU)
      • CA-SCINET-T2: OK (both for local squid and backup to SFU)
      • CA-VICTORIA-WESTGRID-T2 OK (both for local squid and backup to CA-ALBERTA-WESTGRID-T2)
      • SFU-LCG2 OK (both CEs; both for local squid and backup to CA-VICTORIA-WESTGRID-T2)
      • ATLAS_AUSTRALIA - OK (OK for local squid and backup to CA-VICTORIA-WESTGRID-T2)
      • TRIUMF-LCG2 OK (ce1) OK (ce2) (local Frontier launchpad and BNL as backup)
      • VICTORIA-LCG2 OK (OK for local squid and backup to CA-VICTORIA-WESTGRID-T2)

SAM Results

APEL Accounting

APEL Publishing Status

apel-status-ca-20101116.png apel-status-aus-20101116.png

APEL Accounting Results

apel-statistics-ca-20101116.png apel-statistics-aus-20101116.png

Site Reports

Alberta

Recent Issues

  • production job issues
    • See "Production" Activities section below

  • analysis job issues
    • See "Notes" section below

  • CA-ALBERTA-WESTGRID-T2 site status [20101116]
    • srm problems [2010113]
      • regular occurrence where job input files become suspended within dCache - under investigation
    • production dCache gridftpdoor configuration updated to correct globus tcp port settings [20101109]
    • synchronized setting of gsiftpMaxStreamsPerClient in dCache with number of FTS streams for STAR channel [20101109]
    • cream CE testing - internal actions pending
    • dCache testbed installed with golden release
    • Action To Do: update HOTDISK to 2 TB

Outstanding Issues

  • cream CE testing
  • dCache testbed installation
  • additional open items being followed-up:
    • need to update to dCache golden release cycle from currently running 1.9.3-3 - targetting mid-September for upgrade - delayed
    • performance of fairshare trees configuration to be studied with WestGrid site admins in regards to priorities, non-NRAC allocations and effect upon priority of ATLAS jobs
    • network cabling maintenance planned for lighpath connection [postponed from 20100319]

SFU

Recent Issues

  • production job issues
    • See "Production" Activities section below

  • analysis job issues
    • See "Notes" section below

  • updated space token reservation of HOTDISK to 2 TB [20101115]

Outstanding Issues

  • cream CE installation and testing started [20100929]
    • test installation (blackhole.westgrid.ca) at first which will subsequently be applied to update the lcg-CEs (snowpatch then bugaboo)

Victoria

Recent Issues

  • production job issues
    • See "Production" Activities section below

  • analysis job issues
    • see "Notes" section below

  • updated space token reservation of HOTDISK to 2 TB [20101115]

  • update to firewall ACLs to confirm access to globus tcp port range [20101109]
    • synchronized setting of gsiftpMaxStreamsPerClient in dCache with number of FTS streams for STAR channel

Outstanding Issues

  • CREAM CE installation to be performed in next few weeks [20101005]
  • Occasionally some jobs arrive without stage-in .gpg files and have to be terminated. Cause unknown (20100928)

Toronto

Recent Issues

  • production job issues
    • See "Production" Activities section below

  • analysis job issues
    • See "Notes" section below

  • updated space token reservation of HOTDISK to 2 TB [20101112]

  • tcp tuning exercise
    • corrected routing issue between doors and pools which previously were transferring data to pools over external nics rather than internal network [20101112]
    • improvements in communication between LFC server and site WNs observed
    • retry ENV variables to be added still

Outstanding Issues

  • pilot issues [20100511]
    • significant number of immediately failing pilots for both TRIUMF and LMU factories
    • need to logon to WN directly and run the wrapper script by hand
    • Q: Is this issue still a problem and under investigation? (BC) [20101026]

  • dCache error investigations
    • Occassional "There is no file with pnfsid=.." errors (20100430)
      • under discussion with dCache experts at TRIUMF and elsewhere
    • dCache PutUseSpaceCallbacks errors (20100504)
    • Q: Are these still an issue and under investigation? (BC) [20101026]

  • SciNet-TRIUMF lightpath network use and optimization [20100413]
    • BGP established on Force 10 router for link to TRIUMF [20100407]
      • Information Request: is a failover test to the ORAN planned? A: Not yet.

TRIUMF

Recent Issues

  • production job issues
    • See "Production" Activities section below

  • analysis job issues
    • see "Notes" section below

  • FTS tuning for T2-T2 transfers [20101112]
    • synchronized the value of gsiftpMaxStreamsPerClient (at T2 sites) and the number of streams set for the STAR channels

  • reallocation of 80 TB from MCDISK to DATADISK in order to reconfigure ratio of DATA and MC space, and add additional needed space in DATADISK [20101116]
    • various cleanup actions pending on ADC to free up additional DATADISK space at the site

Outstanding Issues

  • temporary increase in size of HOTDISK from 1 to 1.5 TB to avoid DDM blacklist while the central list of required DBReleases is coordinated by ADC [20101013]
    • cleanup by ADC across sites did not liberate much space

  • configured CREAM CE [20100929]
    • under local test and debugging of ENV settings

Australia-ATLAS

Recent Issues

  • summary of this weeks Savannah bugs and GGUS tickets for site:

  • production job issues
    • See "Production" Activities section below

  • analysis job issues
    • See "Notes" section below

Outstanding Issues

  • identified bug in SL53/54 x86_64 where a combination of specific LD_PRELOAD and LD_LIBRARY_PATH can cause core binaries (ls, rm etc.) to segfault

McGill

Recent Issues

  • no news

Production

Summary

CA Cloud Statistics Reference Link (Last Week) Overall Statistics Reference Link (Last Week)

  • Within the CA Cloud:

production-dashboard-none-victoria-20101116.png production-dashboard-none-scinet-20101116.png

  • Within the CA Cloud (Panglia View):
panglia-production-ca-week-20101116.png panglia-analysis-ca-week-20101116.png

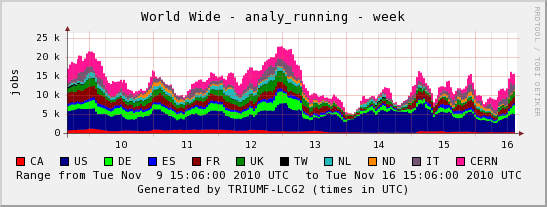

  • How we fared to other ATLAS sites during the past week:
panglia-production-all-week-20101116.png panglia-analysis-all-week-20101116.png


  • Alternate Views (See link for last 3 days only):

  • CA Cloud (last 3 days):

Failed Jobs

  • From Panda Monitor (last week)
panda-dashboard-errors-header-20101116.png panda-dashboard-errors-aus-20101116.png panda-dashboard-errors-ca-20101116.png panda-dashboard-errors-sfu-20101116.png panda-dashboard-errors-triumf-20101116.png

  • From Dashboard (last week):

name,rank,value
TRF_UNKNOWN ,1,452
TRFERROR,2,343
EXEPANDA_DQ2_STAGEIN,3,114
EXEPANDA_DQ2_SERVERERROR,4,84
TRF_SEGFAULT ,5,45
EXEPANDA_JOBKILL_BYPILOT,6,22
EXEPANDA_DQ2PUT_FILECOPYERROR,7,9
EXEPANDA_DQ2PUT_FILECOPYTIMEOUT,8,5
EXEPANDA_JOBDISPATCHER_HEARTBEAT,9,4
EXEPANDA_JOBKILL_NOLOCALSPACE,10,1

    • CA-ALBERTA-WESTGRID-T2
name,rank,value
EXEPANDA_DQ2GET_INFILE,1,199
EXEPANDA_DQ2PUT_FILECOPYERROR,2,6
EXEPANDA_GET_SIZEMISMATCH,3,4
TRFERROR,4,1
EXEPANDA_JOBKILL_SIGTERM,5,1
EXEPANDA_DQ2PUT_FILECOPYTIMEOUT,6,1

    • Australia-ATLAS
name,rank,value
EXEPANDA_DQ2PUT_FILECOPYERROR,1,7
EXEPANDA_DQ2PUT_FILECOPYTIMEOUT,2,4
EXEPANDA_DQ2_STAGEIN,3,2


name,rank,value
TRFERROR,1,5
EXEPANDA_DQ2PUT_FILECOPYERROR,2,3
EXEPANDA_JOBKILL_BYPILOT,3,2
EXEPANDA_DQ2_STAGEIN,4,1

    • CA-SCINET-T2 (ce1)
name,rank,value
EXEPANDA_DQ2GET_INFILE,1,142
EXEPANDA_GET_NOSUCHFILE,2,124
EXEPANDA_JOBKILL_SIGTERM,3,122
EXEPANDA_GET_REPLICANOTFOUND,4,94
EXEPANDA_JOBKILL_BYPILOT,5,33
EXEPANDA_JOBDISPATCHER_HEARTBEAT,6,16
EXEPANDA_DQ2PUT_FILECOPYERROR,7,10
EXEPANDA_PILOTEXCEPTION,8,7
EXEPANDA_PUT_LFCADDFILEINFOFAILED,9,6
TRFERROR,10,4
EXEPANDA_DQ2PUT_FILECOPYTIMEOUT,11,3
EXEPANDA_GET_FAILEDTOGETLFCREPLICAS,12,3

    • CA-SCINET-T2 (ce2)
name,rank,value
EXEPANDA_JOBKILL_SIGTERM,1,101
EXEPANDA_GET_NOSUCHFILE,2,96
EXEPANDA_DQ2GET_INFILE,3,96
EXEPANDA_GET_REPLICANOTFOUND,4,86
EXEPANDA_JOBKILL_BYPILOT,5,33
EXEPANDA_DQ2PUT_FILECOPYERROR,6,20
EXEPANDA_JOBDISPATCHER_HEARTBEAT,7,15
TRFERROR,8,7
EXEPANDA_PUT_LFCADDFILEINFOFAILED,9,5
EXEPANDA_DQ2PUT_FILECOPYTIMEOUT,10,2

    • CA-VICTORIA-WESTGRID-T2
name,rank,value
TRFERROR,1,23
EXEPANDA_DQ2_STAGEIN,2,12
EXEPANDA_DQ2PUT_FILECOPYERROR,3,9
TRF_UNKNOWN ,4,3
EXEPANDA_JOBKILL_BYPILOT,5,1

You can find the meanings of the transform error codes on this link.

  • My Notes:
    • information missing in dashboard (production) still for CA-SCINET-T2.

  • Yuri's notes: (Nov 9 - 15, 2010)

- active tasks from PandaDB: 591
      -- distribution by cloud:
    CA:20 CERN:3 DE:63 ES:13 FR:140 IT:11 ND:18 NL:106 TW:9 UK:113 US:95

2) Wed Nov.10
+ CA/CA-VICTORIA-WESTGRID-T2_DATADISK still many FT f./TRANSFER er.GGUS
  63919 solved:restarted dCache with corrected values of
  clientDataPortRange Nov.11.

4) Fri Nov.12
- CA/CA-SCINET-T2 still 220 job f./Get:no such file or dir.GGUS 63938 in
  progress updated.

5) Sat Nov.13
+ CA/CA-ALBERTA-WESTGRID-T2 FT f./SOURCE/GENERAL_F./AsyncWait.GGUS 64222
  verified:lots of file transfers were suspended in dCache,solved by
  retrying the restore requests.

-- BryanCaron - 2010-11-13
Attachments Attachments
Topic attachments
I Attachment History Action Size Date Who Comment
PNGpng apel-statistics-aus-20101116.png r1 manage 856.5 K 2010-11-16 - 15:23 BryanCaron
PNGpng apel-statistics-ca-20101116.png r1 manage 1381.9 K 2010-11-16 - 15:23 BryanCaron
PNGpng apel-status-aus-20101116.png r1 manage 15.2 K 2010-11-16 - 15:23 BryanCaron
PNGpng apel-status-ca-20101116.png r1 manage 25.6 K 2010-11-16 - 15:23 BryanCaron
PNGpng panda-dashboard-ca-20101116.png r1 manage 654.9 K 2010-11-16 - 17:17 BryanCaron
PNGpng panda-dashboard-errors-aus-20101116.png r1 manage 319.6 K 2010-11-16 - 16:58 BryanCaron
PNGpng panda-dashboard-errors-ca-20101116.png r1 manage 1473.5 K 2010-11-16 - 16:58 BryanCaron
PNGpng panda-dashboard-errors-header-20101116.png r1 manage 334.0 K 2010-11-16 - 16:58 BryanCaron
PNGpng panda-dashboard-errors-sfu-20101116.png r1 manage 494.2 K 2010-11-16 - 16:58 BryanCaron
PNGpng panda-dashboard-errors-triumf-20101116.png r1 manage 868.7 K 2010-11-16 - 16:58 BryanCaron
PNGpng panda-dashboard-pd2p-20101116.png r1 manage 484.1 K 2010-11-16 - 15:19 BryanCaron
PNGpng panda-dashboard-summary-20101116.png r1 manage 932.2 K 2010-11-16 - 17:17 BryanCaron
PNGpng panglia-analysis-all-week-20101116.png r1 manage 35.2 K 2010-11-16 - 15:32 BryanCaron
PNGpng panglia-analysis-ca-week-20101116.png r1 manage 31.0 K 2010-11-16 - 15:32 BryanCaron
PNGpng panglia-production-all-week-20101116.png r1 manage 34.8 K 2010-11-16 - 15:32 BryanCaron
PNGpng panglia-production-ca-week-20101116.png r1 manage 28.4 K 2010-11-16 - 15:32 BryanCaron
PNGpng production-dashboard-ca-20101116.png r1 manage 413.5 K 2010-11-16 - 15:40 BryanCaron
PNGpng production-dashboard-none-scinet-20101116.png r1 manage 128.4 K 2010-11-16 - 15:45 BryanCaron
PNGpng production-dashboard-none-victoria-20101116.png r1 manage 128.6 K 2010-11-16 - 15:45 BryanCaron
PNGpng production-dashboard-summary-20101116.png r1 manage 928.9 K 2010-11-16 - 15:40 BryanCaron
Edit | Attach | Watch | Print version | History: r6 < r5 < r4 < r3 < r2 | Backlinks | Raw View | Raw edit | More topic actions
Topic revision: r6 - 2010-11-16 - BryanCaron

This site is powered by the TWiki collaboration platform Powered by PerlCopyright © 2008-2026 by the contributing authors. All material on this collaboration platform is the property of the contributing authors.
Ideas, requests, problems regarding TWiki? Send feedback
