Tier1 and Tier-2 Weekly Report 2010-01-12

General News

* ADC News [20100112]

* information system reminders [20100112]

  • sites will be contacted in the next week if their published values of logicalCPU, physicalCPU, HEP-SPEC and kSI2K from their site BDIIs show abnormalities
    • in terms of the HEPSPEC number advertisement, sites that haven't run the benchmark yet should do so for their resources and add it to the site BDII.
      • As of today this has only been done for TRIUMF, SFU, CA-ALBERTA-WESTGRID-T2 and AUSTRALIA-ATLAS.

* gLite Updates Announced

  • Release of UPDATE 07 to gLite 3. 2. Priority: Normal (20100107) (x86_64 link)
    • New services released in SL5: CREAM, SCAS, GLEXEC for the WN, TORQUE server and TORQUE utils, Updated TORQUE client configuration, Updated lcg-info-dynamic-pbs
  • Release of UPDATE 60 to gLite 3. 1. Priority: HIGH (20100111) (i386 link) and (x86_64 link)
    • New version of lcg-vomscerts, New version of yaim for TORQUE, Update of TORQUE and MPI, Set of bug fixes for CREAM, Fix for the Torque info provider, New version of ICE for the WMS

* WLCG Tier-2 Accounting Results for December 2009 [20100111]

* CA Cloud Squad Actions [20100112]

  • none in the past week

* ROC_Canada news [20100112]

  • shifters
    • each site should have provided the names of at least one volunteer to perform shifts so as to share the load
    • shifts are relatively light, during business hours, and involves checking a dashboard and making sure tickets are addressed in a timely way by the sites involved
    • please contact Di, Reda and Mike regarding shifters volunteering from your site
  • sites are reminded that they should have submitted to Di the electronically signed SLA between their site and ROC_Canada

* Squid deployment [20100105]

  • tested in SAM for ATLAS https://lcg-sam.cern.ch:8443/sam/sam.py?sensors=CE&regions=ROC_Canada&vo=atlas&order=SiteName&funct=ShowSensorTests, also within GangaRobot
  • currently status as of this morning (WARN is ok)
    • CA-ALBERTA-WESTGRID-T2 WARN (local squid server offline since 20091108)
    • CA-SCINET-T2: Error (Frontier setup not yet defined as per standard ATLAS software installation procedures)
    • SFU-LCG2 WARN (for both CEs; local is OK; Victoria squid is the backup but not online)
    • TORONTO-LCG2 WARN (no local squid; primary backup points to ALBERTA squid but fails due to network routing issue + squid offline; secondary backup to SFU OK)
    • TRIUMF-LCG2 WARN (ce1) OK (ce2) (local Frontier launchpad and BNL as backup)
    • VICTORIA-LCG2 WARN (local squid access error; backup points to SFU squid)
    • ATLAS_AUSTRALIA - WARN (local squid ok; backup access to VICTORIA error)

SAM Results

OPS VO

  • Tier-2 Summary (All Sites)

  • ops-t2-availability-summary-20100112.png:

  • ops-t2-reliability-summary-20100112.png:

APEL Accounting

APEL Publishing Status

  • apel-status-ca-20100112.png:

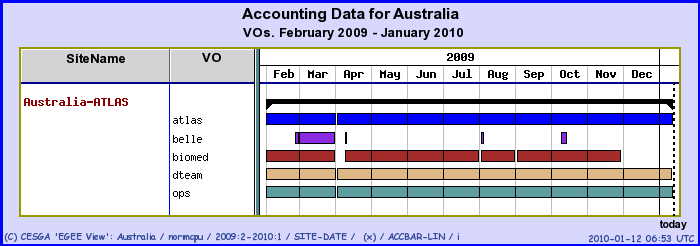

  • apel-status-aus-20100112.png:

APEL Accounting Results

  • apel-ca-20100112.png:

  • apel-aus-20100112.png:

Site Reports

Alberta

Recent Issues

  • production job issues
    • See "Production" Activities section below

  • analysis job issues
    • See "Notes" section below

  • ALBERTA-LCG2 site
    • site offline to ATLAS since early December 2009 and currently in state of unscheduled downtime in GOCDB
      • site storage migrated to CA-ALBERTA-WESTGRID-T2 site (except for 5.5 TB which are hosted on a server showing memory errors)
      • site will be transitioned to Tier-3 functionality, upgrade to SL5 and return of SRM storage functions

  • CA-ALBERTA-WESTGRID-T2 site installation status [20100111]
    • network fibre cut between Calgary and Edmonton affecting WestGrid network access to cluster as well as end-to-end lightpath to TRIUMF at approx. 09:30 (20100111)
      • brief period of 2 hours where internal network misconfiguration prevented proper communication between CE and local Torque-Moab server
      • automatic failover of lightpath to research network WAN observed with return to lightpath just after midnight (see attached)
        • UAlberta_lcgce01_last_108000-20100112.png:

    • update to Moab fairshare values for ATLAS activities based on NRAC allocations made [20100111]
      • prior to this [20100108] various groups of jobs were not running due to the incorrect early-cluster commissioning fairshare settings for ATLAS being picked-up
      • open items to be followed-up:
        • APEL accounting information publishing
        • SL5 WNs and additional CE
        • need to update to dCache golden release cycle from currently running 1.9.3-3

  • following up on some ATLAS software installation problems following network hostname resolution changes for internal network prior to Christmas
    • first noticed due to zero level of production activity in the previous reporting week with many jobs assigned but not running, waiting for input files [20100105]

Outstanding Issues

  • squid server (vm) offline since restart to CA-ALBERTA-WESTGRID-T2 services following scheduled downtime for power maintenance [20091108]
    • restart errors under investigation; automatic fail-over to secondary squid at SFU functioning as expected

SFU

Recent Issues

  • summary of this weeks Savannah bugs and GGUS tickets for site:

  • production job issues
    • See "Production" Activities section below

  • analysis job issues
    • See "Notes" section below

Outstanding Issues

  • identified one chassis of nodes where IB performance was degraded [20100105]
    • nodes in chassis marked offline for repair by vendor

  • SFU storage access protocol sanity check [20091022]
    • missing dcap - Status of this?

  • apel publishing [20090825]
    • apel publishing information missing for October (see above plots) [20091013]
    • publishing status for dteam appears empty since mid-July and coincides with appearance of the atcan group in the status graphs (see above)
    • confirmed to coincide with change in VOMS group and role for direct tests by Sergey
    • apel publishing results for September and October 2009 [20091110]
      • low values published but not expected when comparing with ATLAS production dashboard for the same period
      • GlueHostBenchmarkSF00 set to zero for both clusters in site BDII - fixed by site - reparsing and republishing to apel performed but still low values reported
    • low-priority follow-up needed given that dteam jobs are observed regularly and consistently at other sites (Alberta for example)

Victoria

Recent Issues

  • production job issues
    • See "Production" Activities section below

  • analysis job issues
    • see "Notes" section below

Outstanding Issues

  • will likely switch to using the TRIUMF top-level BDII from the CERN-based BDII in order to help resolve observed timeouts [20100105]

  • SCRATCHDISK became full [20091112]
    • action to Bryan to write short srm script to generate warning notifications to sites when token areas approach becoming full

Toronto

Recent Issues

  • production job issues
    • See "Production" Activities section below

  • analysis job issues
    • See "Notes" section below

  • TORONTO-LCG2 site
    • site offline to ATLAS; currently on unscheduled downtime in GOCDB

Outstanding Issues

  • Squid/Frontier access tests via ReadReal [20091028]
    • strange network path issue seen when attempting to reach Alberta squid server, attempting to reach via LightPath but fails
    • added secondary backup of SFU squid into ToA

TRIUMF

Recent Issues

  • analysis job issues
    • see "Notes" section below

Outstanding Issues

Australia-ATLAS

Recent Issues

  • summary of this weeks Savannah bugs and GGUS tickets for site:

  • production job issues
    • See "Production" Activities section below

  • analysis job issues
    • See "Notes" section below

Outstanding Issues

McGill

Recent Issues

  • status?

Outstanding Issues

Production

Summary

site success failure success (walltime) failure (walltime) efficiency efficiency (walltime)
TRIUMF-LCG2 22124 986 608054765 33738235 95.7% 94.7%
SFU-LCG2 8352 33 258119592 551487 99.6% 99.8%
CA-ALBERTA-WESTGRID-T2 4351 1343 150658609 13562375 76.4% 91.7%
VICTORIA-LCG2 1638 277 115746311 9404267 85.5% 92.5%
Australia-ATLAS 615 47 12452609 617641 92.9% 95.3%
total 37080 2686 1145031886 57874005 93.2% 95.2%

DashboardSummary.pdf

Failed Jobs

From Panda Monitor:

FailedJobs.pdf

From Dashboard:

You can find the meanings of the transform error codes on this link.

TRIUMF:
name,rank,value
EXEPANDA_DQ2PUT_FILECOPYERROR,1,887
EXEPANDA_JOBKILL_SIGTERM,2,56
EXEPANDA_JOBDISPATCHER_HEARTBEAT,3,33
EXEPANDA_DQ2GET_INFILE,4,7
EXEPANDA_DQ2_FILEADD,5,1
EXEPANDA_JOBKILL_BYPILOT,6,1
EXEPANDA_JOBKILL_BYSERVER,7,1

Alberta:
name,rank,value
EXEPANDA_DQ2GET_INFILE,1,673
EXEPANDA_JOBDISPATCHER_HEARTBEAT,2,637
EXEPANDA_DQ2_STAGEIN,3,32
EXEPANDA_DQ2PUT_FILECOPYERROR,4,1

Australia:
name,rank,value
EXEPANDA_DQ2_STAGEIN,1,36
EXEPANDA_DQ2PUT_FILECOPYERROR,2,5
EXEPANDA_JOBKILL_BYPILOT,3,3
EXEPANDA_GET_FAILEDTOGETLFCREPLICAS,4,1
TRFERROR,5,1
EXEPANDA_JOBDISPATCHER_HEARTBEAT,6,1

SFU:
name,rank,value
EXEPANDA_JOBDISPATCHER_HEARTBEAT,1,17
EXEPANDA_PUT_GLOBUSSYSTEMERROR,2,9
EXEPANDA_JOBKILL_SIGTERM,3,4
EXEPANDA_JOBKILL_BYPILOT,4,1
TRF_UNKNOWN ,5,1
EXEPANDA_DQ2_STAGEIN,6,1

Victoria:
name,rank,value
EXEPANDA_JOBDISPATCHER_HEARTBEAT,1,245
EXEPANDA_DQ2_STAGEIN,2,32

Notes

  • How we fared to other ATLAS sites ...
cloud success failure success (walltime) failure (walltime) efficiency efficiency (walltime)
BNL 155181 3731 4690287716 157325800 97.7% 96.8%
LYON 77738 11782 3262308547 529624055 86.8% 86%
NDGF 81083 2155 1607194450 17755705 97.4% 98.9%
PIC 68689 478 1364688413 16373870 99.3% 98.8%
RAL 59971 1268 2749161030 62054822 97.9% 97.8%
SARA 47668 12751 1520634462 189100749 78.9% 88.9%
FZK 44390 279 1143988626 6220775 99.4% 99.5%
None 35819 5339 1083925958 27476227 87% 97.5%
TRIUMF 37080 2686 1145031886 57874005 93.2% 95.2%
CNAF 29102 2818 1112189026 28585474 91.2% 97.5%
ASGC 19454 1460 618638302 34386636 93% 94.7%
CERN 463 57 1598447 31194 89% 98.1%
total 656638 44804 2.0299646863e+10 1126809312 93.6% 94.7%

  • My Notes:
    • Australia offline since 2010-01-12 10:59:08 UTC.
    • Alberta production queue offline GGUS ticket 54601 since 2010-01-10 20:20:18 UTC
    • Low efficiencies ( < 95%):
      • Alberta: GGUS ticket 54601
      • Australia: stagein errors (network issues)
      • Victoria: lost heartbeat (partly because of downtime and queue not drained.)

  • ADCoS (Yuri's notes):
    • - active tasks from PandaDB: 78
    • -- by cloud: CA:10 CERN:1 DE:8 ES:8 FR:7 IT:6 ND:10 NL:7 TW:3 UK:6 US:12
    • Wed Jan.6
      • - CA/TRIUMF->UVIC FT f./fail to cont.on remote SRM.GGUS 54507 assigned
    • Thu Jan.7
      • - CA/TRIUMF ~40K/h datatape DDM&srmls requests causing timeouts.Experts informed.Elog 8481.
      • - CA/TRIUMF<-AUSTRALIA 350 FT f.,eff.5%/GRIDFTP_ER./conn.reset by peer. GGUS 54519 in progress:several anomalies in networking.
      • + CA/AUSTRALIA all jobs f./BDII no entry.GGUS 54532 solved:outage of the site BDII,unknown networking intervention,back now.
    • Sat Jan.9
      • + CA/TORONTO FT f./CONN./SRM.Site in DT.Blacklisted in DDM. Elog 8546,8548,8550.
    • Sun Jan.10
      • - CA/AUSTRALIA-ATLAS FT and job f./Globus_xio500 er.GGUS 54565,54519 in progress:network anomalies under investigation.Set offline.Elog 8857.

-- BryanCaron - 11 Jan 2010
